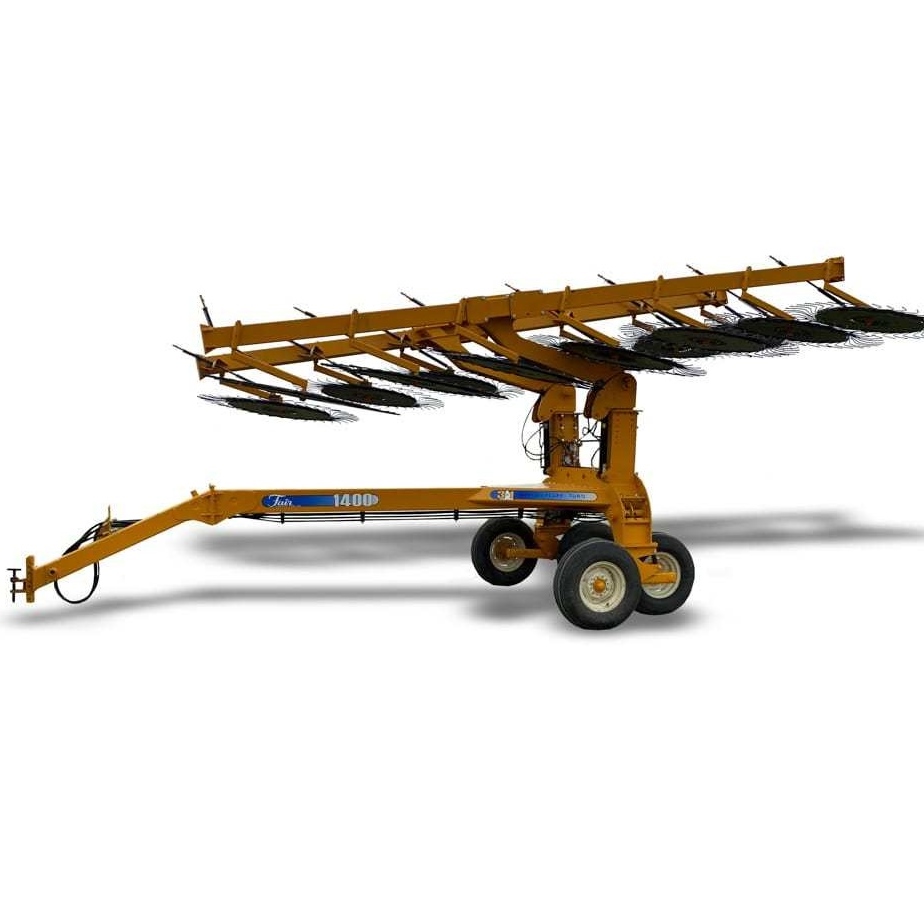

Fair High Capacity Hay Rakes
Roll two windrows over at once without merging them together
Allows crops to be rolled onto dry ground while keeping windrows separated for drying exposure
Gently lifts hay while maintaining a wide windrow for drying exposure
Hay is fluffed up to increase windrow volume
Lifts the crop off the moist ground
Fluffing breaks up the “top layer seal” and blends the crop for maximum drying
60″ wheels gently merge 2 windrows into 1
Infinite windrow width adjustment
Exterior wheel frame for high capacity
Adjustable spring wheel tension with high range flotation
Only one tractor remote is required. Weatherproof controls enable the operator to adjust all functions from the tractor.
The frame incorporates a walking tandem axle that works together with a spring suspension system. Together this gives the frame industry leading floation.
The wheel frame beams are mounted behind the wheels allowing for full capacity of the wheel in heavy crops. This eliminates spots where hay can bridge or hang up. In addition the large 60″ diameter wheels turn slower for less wear and deliver higher capacity.
SPEED & MANEUVERABILITY
The centralized frame enables a much tighter turning radius. This enables the operator to turn around much easier on end rows eliminating the need for skipping rows. No caster support wheels enable the rake to fold quickly and transport at road speeds with excellent stability.
DUAL SPRING WHEEL SUSPENSION
Rake wheels have a large range of floatation for ground contouring. Rake wheels have an adjustable floatation spring and adjustable counteracting spring to rapidly return the wheel if it bounces up. This enables the rake wheels to follow the ground accurately even at high speeds.
