Description

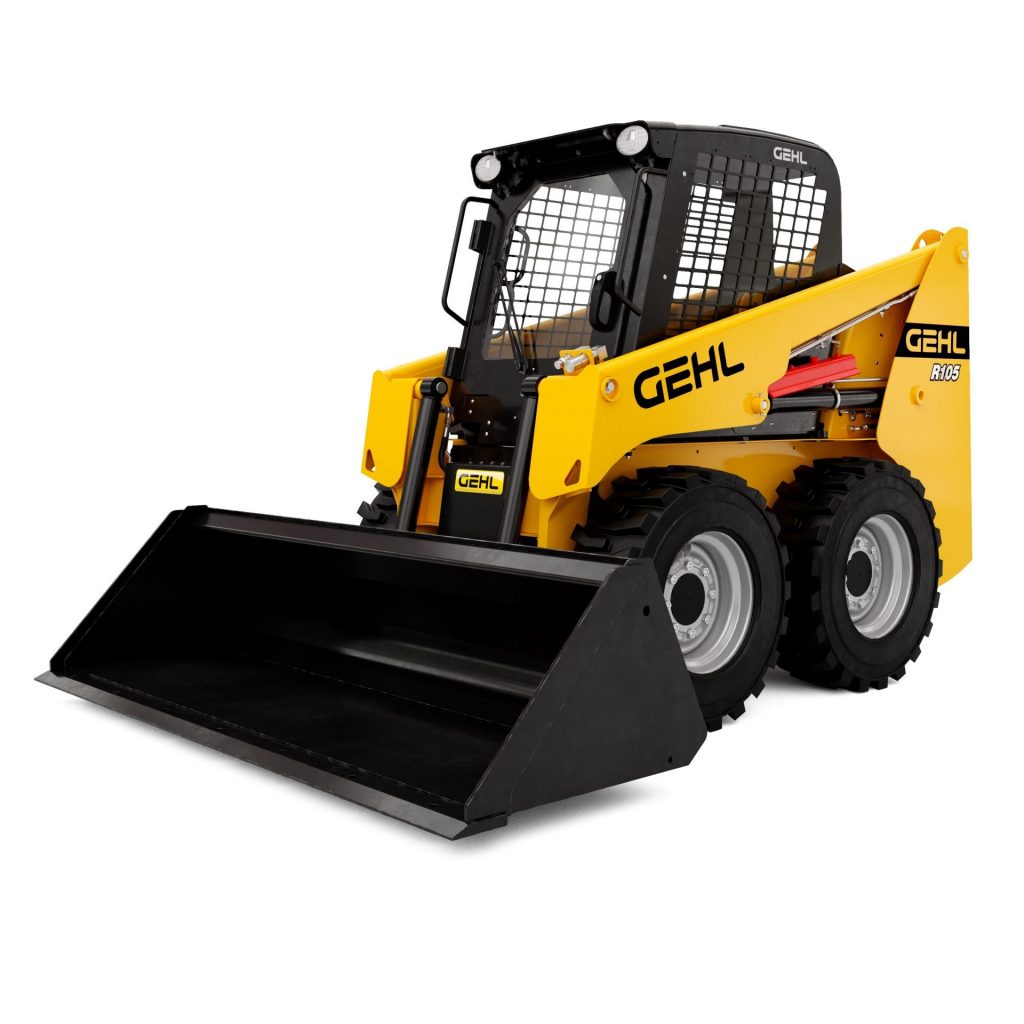

Gehl R105 Skid Loader
Operator’s Cab
A large operator’s compartment with clear front, side and rear sight lines provides operators full, expansive views for increased safety.
- ROPS/FOPS Level II is standard for extra operator protection.
- Roof grid section and window provide excellent bucket visibility at full height.
- Adjustable operator restraint bar offers secondary protection and serves as a padded armrest.
- Lockout system shuts down lift/tilt functions when optional front door is opened.
- Open canopy, open canopy with door and enclosed cab with heat are available.
Controls
Ergonomic controls in the Gehl R105 Skid Loader provide smooth loader and attachment operation.
- Hand and foot throttle are standard equipment, providing quieter operation and less fuel consumption
- T-Bar hands-only drive control system
Enigne
Equipped with a powerful 33.1-hp Yanmar diesel engine, the R105 Skid Loader can tackle any challenge.
- Liquid-cooled for superior performance in all weather conditions.
- Excellent cold weather starting with glow plug assist system
Hydraulics
The R105 provides 14.5 gpm of hydraulic flow powering a variety of attachments to get work done faster
- Direct-drive hydrostatic pump with self-neutralizing feature provides 100% efficient drive from engine to pump, requiring no maintenance
- Hydraloc™ Automatic Interlock System increases operator safety by locking lift, tilt and drive systems when the operator leaves the seat, raises the restraint bar or turns off the ignition switch.
Lift Arm
Strong lift arm provides strength, durability and excellent view of the tires and sides of the loader for increased precision and safety.
Serviceability
The R105 has an ingenious design, including low-maintenance components and easy maintenance access.
- Entire ROPS/FOPS structure pivots back, with gas-spring assist, for full, easy access to the internal hydraulic components.
- Swing-open rear door and flip-up engine cover fully expose maintenance access points to engine, battery, filters and filler caps.
- Maintenance-free axles are lubricated and sealed for long life.
- Removable access plates for clean out.
