Description

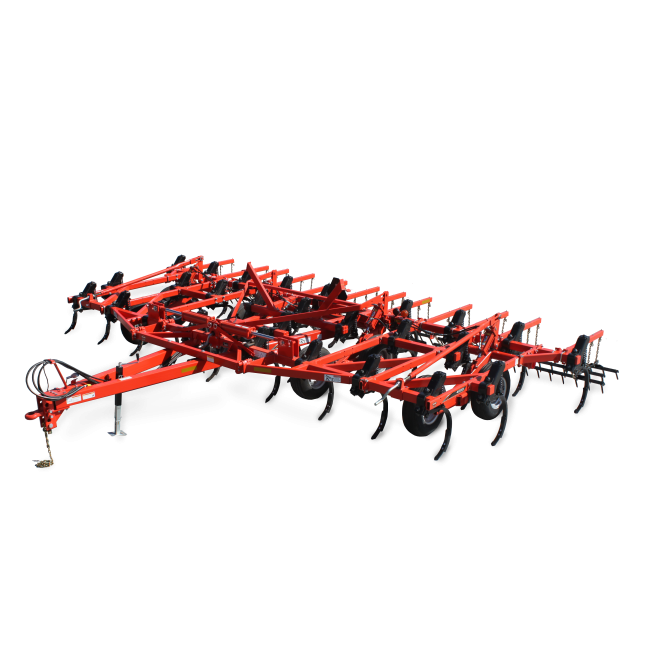

4000 Flex-Wing Chisel Plow
The KUHN Krause 4000 Flex-Wing Chisel Plow provides durable, economical primary tillage with a variety of shanks and point options to meet different requirements. This promotes breakdown of crop residue, allows good root development for the next crop. Working widths range from 17’ to 39’. Positive Mechanical Depth Control is standard on all KUHN Krause 4000 flex-wing chisel plows to ensure even operating depth across the width of the machine.
Shank Options
- Rigid
- Low-cost reliability
- Non-rock conditions
- Shear-Bolt
- Shear-bolt protected
- Retains shank after shear-bolt trip
- Spring Reset
-
- 600-pound point load
- 9” trip height
Point Options
- 2” Reversible, Straight Point
- Excellent soil penetration
- Cuts compaction
- 3” Twisted Shovel
- Good soil penetration
- Residue mixing action
- Good soil penetration
- Residue mixing action
- Double K™ 2” Reversible Cast Chromium-Carbide Chisel Point
-
- Good soil penetration
- Residue mixing action
- Double the wear life of the 2″ forged steel, reversible straight point
Harrow Attachment
Optional harrow attachment is available as either a 3-row spike harrow or 5-row spike harrow.
Specs
Working width (feet) | 17′ – 39’ |
Transport width (feet) | 12’9″ – 18’4” |
Transport Height (feet) | 9’8″ – 17’3” |
Number of sections | 3 |
Frame type | Folding |
Weight (lb) | 5,452 – 10,188 |
Shank Spacing | 12″ |
Number of Shanks | 17 – 39 |
Working Depth | 6” – 10” |
Operating Speed (MPH) | 4 – 7 |
Tractor Power (hp) | 120 – 390 |
