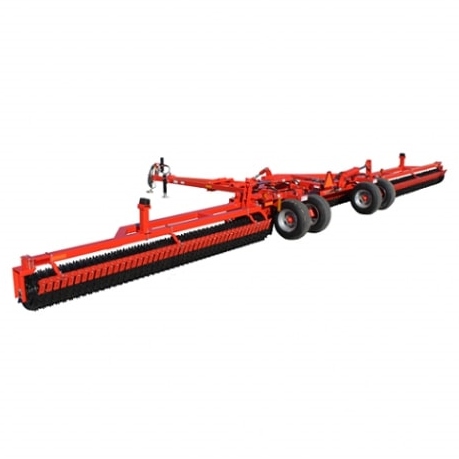

The KUHN Krause 4400 packer consistently downsizes clods and uniformly firms the seedbed across the width of the machine. This provides an ideal seedbed that has uniform density soil characteristics and sets the stage for good seed-to-soil contact. Air pockets, large dirt clods and an uneven planting surface can all negatively impact your crop. Kuhn Krause’s innovative use of massive 6 5/8″ roller axles eliminate the need for troublesome middle gang bearings on Flex-Wing models and eliminates the skip in the tilled soil due to the space taken by the middle gang bearing. Transport wheels clear the soil by several inches eliminating wheel tracks in the seedbed.
Ductile iron packer wheels provide excellent durability in rocky conditions and decreased maintenance of the packer gang. KUHN Krause SuperSeal regreasable bearings are standard on all 4400 packer axles to ensure long life and rugged durability. Since there are no middle gang bearings on Flex-Wing models, SuperSeal bearings can be easily removed from the gang for servicing without disassembling the gangs – a time and labor saving feature you’ll be sure to appreciate. Reversible scrapers allow operation in more wet and sticky soil conditions, widening the window of operation. Being reversible, they offer twice the wear life compared to non-reversible designs.
Optional “V” Packers
|Working width (feet)||12′ – 46’|
|Number of wheels||4|
|Transport width (feet)||13′ – 16’ 1”|
|Transport Height (feet)||6’11” – 8’4″|
|Number of sections||1 – 3|
|Frame type||Rigid – Folding|
|Weight (lb)||2,875 – 11,040|
|Tractor Power (hp)||12 – 92|
