Description

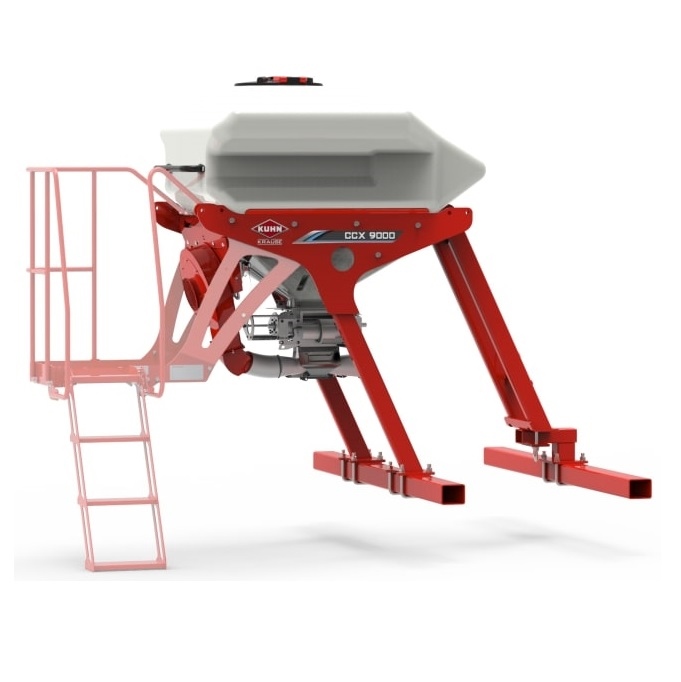

CCX-9000ACC Cover Crop Seeder
KUHN Krause offers three CCX-9000ACC models with a basic mounting frame, allowing customers to mount the cover crop seeder to machines of their choosing.
Poly Hopper
A 21-, 34- or 45-cubic foot hopper feeds seed to the electric drive metering unit which uses a speed signal from the tractor to ensure consistent application rate regardless of forward speed variations.
Quantron S-2
The Quantron S-2 terminal, with 5 ½” color touchscreen, allows the operator to control and monitor all aspects of the CCX 9000 from the tractor cab. Metric units can be selected if preferred.
Electric Drive Metering Unit
The electric drive metering unit features a unique dual-spline system meaning there are no components to add or remove when changing between small and large seed types or when switching between rates.
Seed Distribution System
Seed is split precisely between outlets using an air drill style divider head to ensure excellent repartition of seed across the width of the machine. This system features a hydraulically driven fan. Speed can be adjusted to suit seed type by adjusting the oil flow from the tractor.
Seed Diffuser Option
Diffusers may be mounted at the operator’s preferred location for the respective machine which the CCX 9000ACC is mounted on. Adjustable mounts are available for mounting to a KUHN Krause 24/7® finishing attachment. Mounting to any other machine will be up to the customer. Easily adjust the seed diffuser angle with the “wrenchless” design.
Specs
| Number of Diffusers
Hopper Size (Bu) |
16 – 24
21 – 45 |
