Description

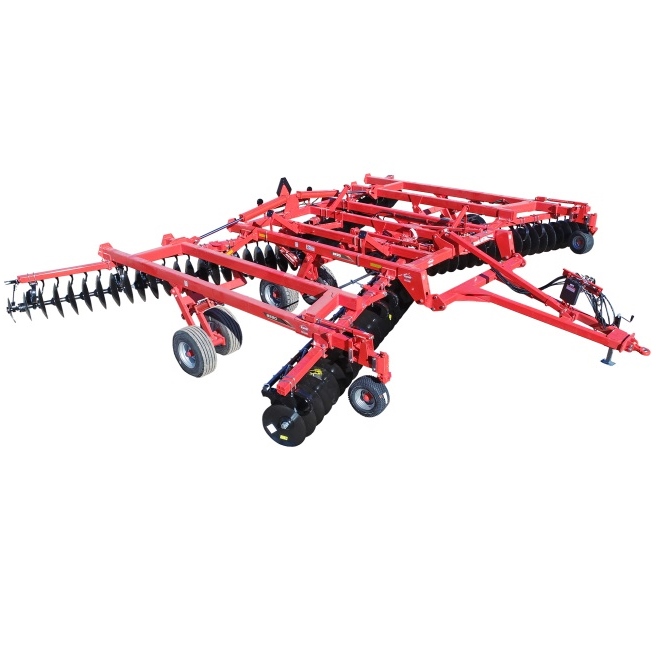

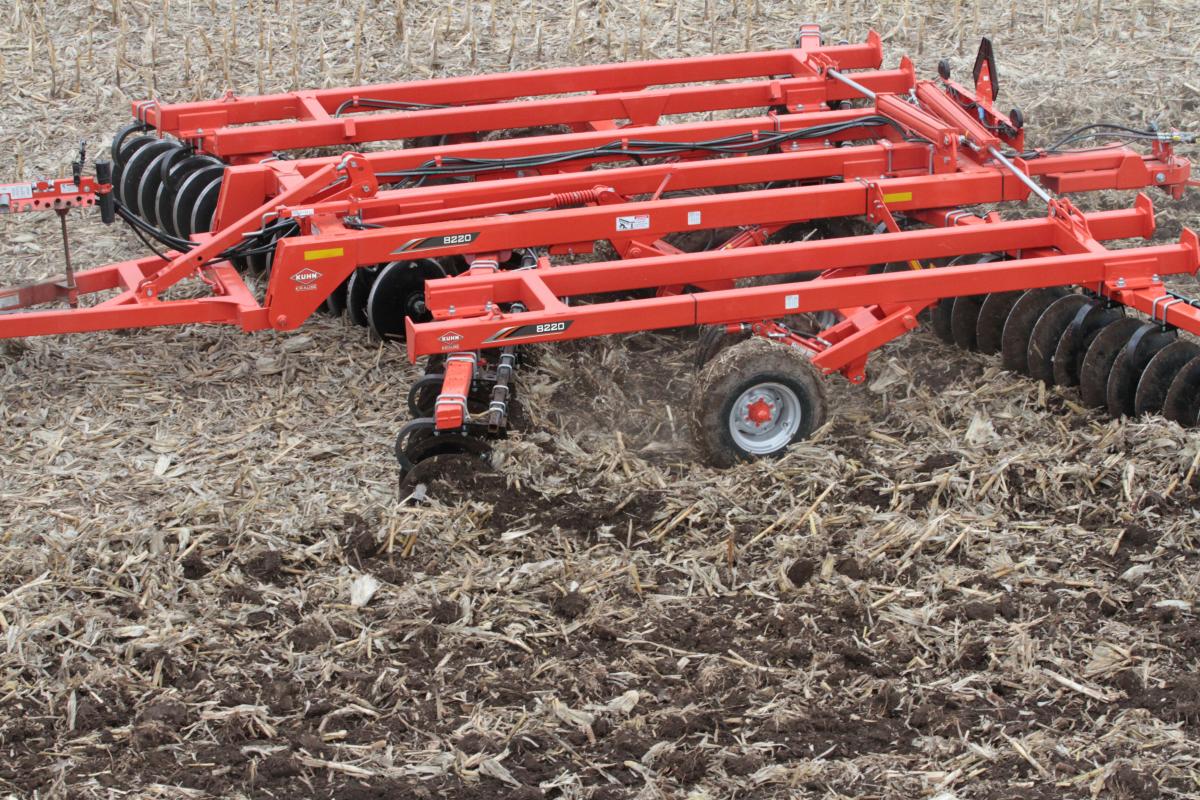

With a variety of Residue Razor™ disc blades, and wide or narrow spacing, producers can configure the 8220 tandem disc harrow to match their residue and soil conditions for optimum performance. Choose a 24/7® leveling system for a reliable seedbed finish.
Specs
| Working width (feet) | 18’10” – 44’ 3” |
| Number of discs | 54 – 122 |
| Disc diameter (in) | 22″ – 24″ |
| Disc Spacing (in) | 8″ or 9″ |
| Number of wheels | 8 – 12 |
| Number of bearing arms | 18 – 34 |
| Transport width (feet) | 12’2″ – 17’ 7” |
| Transport Height (feet) | 10’8″ – 15’ 6” |
| Number of sections | 3 – 5 |
| Frame type | Folding – Quad Fold |
| Weight (lb) | 13,177 – 30,779 |
| Tractor Power (hp) | 133 – 398 |
| Recommended Operating Speed (mph) | 5 – 7 |
