Description

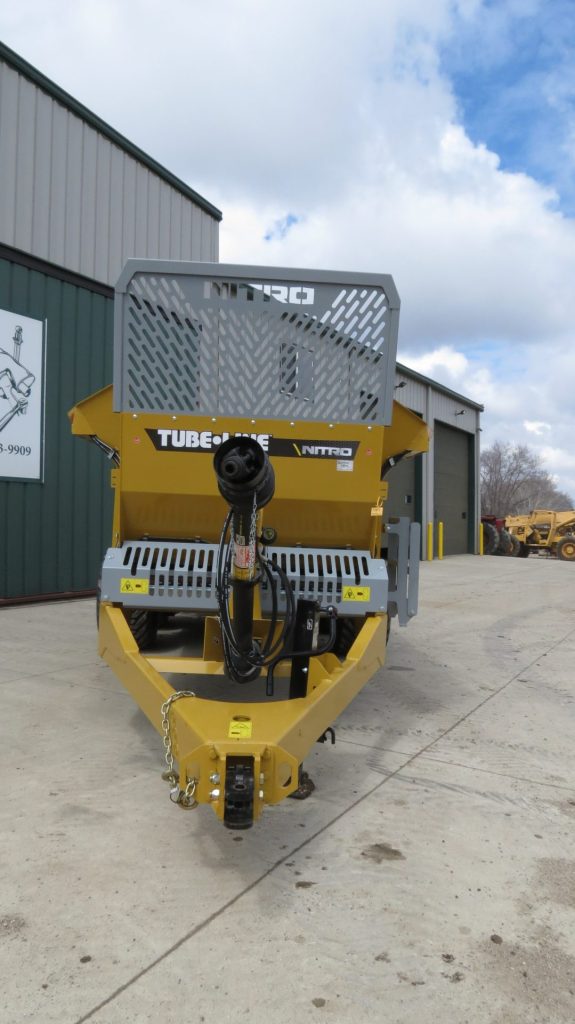

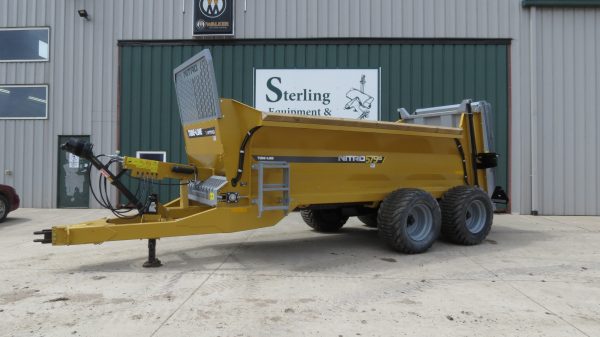

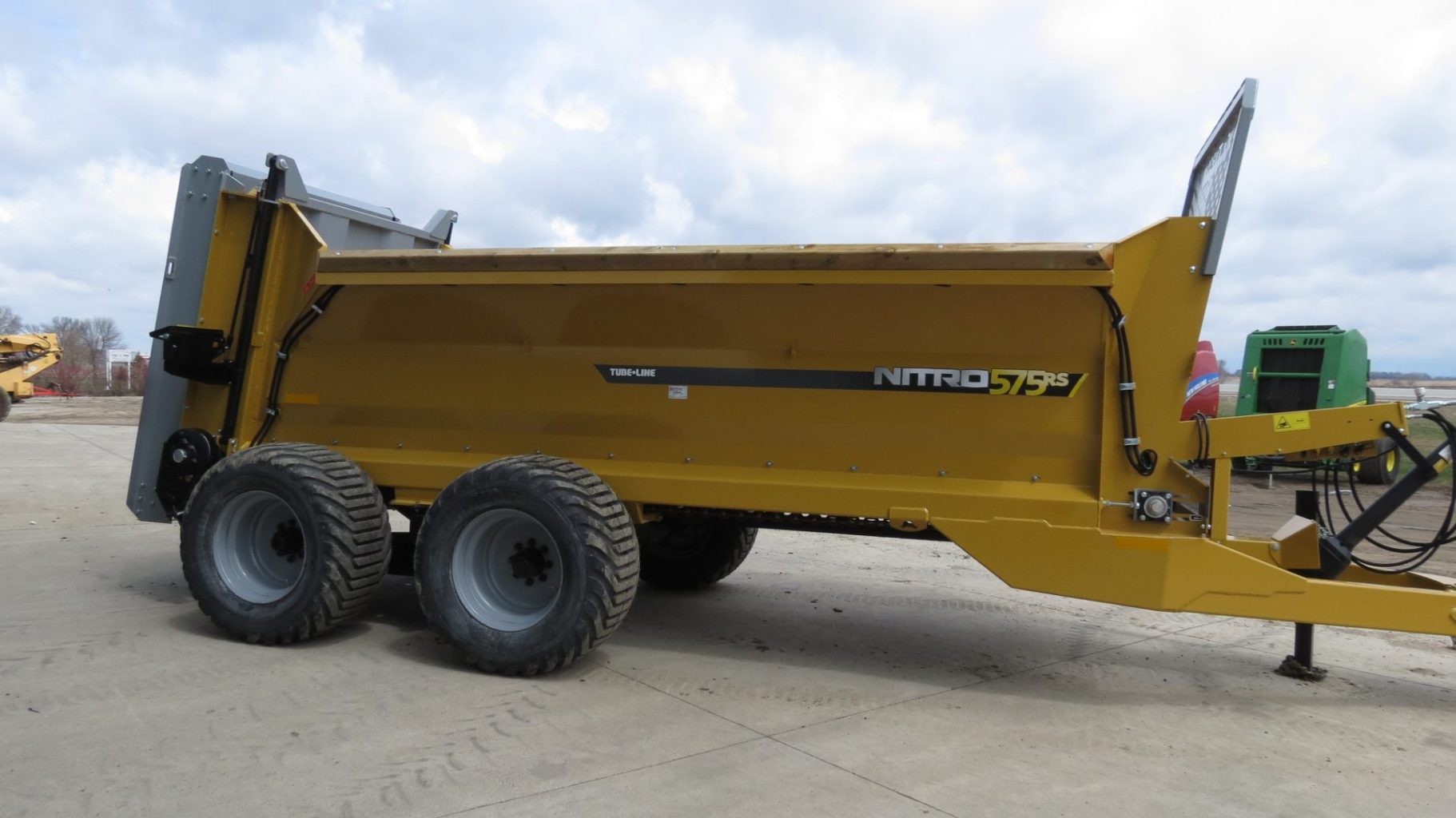

2022 Tubeline Nitro 575RS Manure Spreader
Responding to market demand, the NITRO Rancher Series was developed to ensure smaller operations get the same metering in a format tailored to them. NITRO RS spreaders are ideal for farmers trying to keep their yards clean while delivering rich nutrients to the field. Removeable beater assemblies provide increased value and functionality, allowing the NITRO to operate as a rear discharge trailer with a live floor when not spreading.
- 16 Ton Carrying Capacity
- Heaped (cubic ft): 576
- Struck Level (cubic ft): 379
- Dimensions:
- Inside Dimensions:
- 62.5″W x 45.5″D x 218″L
- Inside Width Between Flare: 102 & 89″, respectively
- Overall Length: 27.5’
- Overall Outside Width (Single Axle): 131″
- Overall Outside Width (Tandem Axle): 116″
- Loading Height (Single Axle): 88.5″
- Loading Height (Tandem Axle): 80″
- Inside Dimensions:
- Wheel Hub Capacity (Tandem Axle):
- 12,000 lbs. – (8-bolt) x4
- 16,000 lbs. – (10-bolt) x4
- Tires:
- Tandem Tire Sizes: 425/22.5 Recap Truck
- 550/45-22.5 Flotation
- 700/50-26.5 Flotation
- Wheel Hub Capacity (Single Axle) 20,000lbs (10-bolt) x4
- Single Tire Sizes 710/70 R38 Tractor Lug

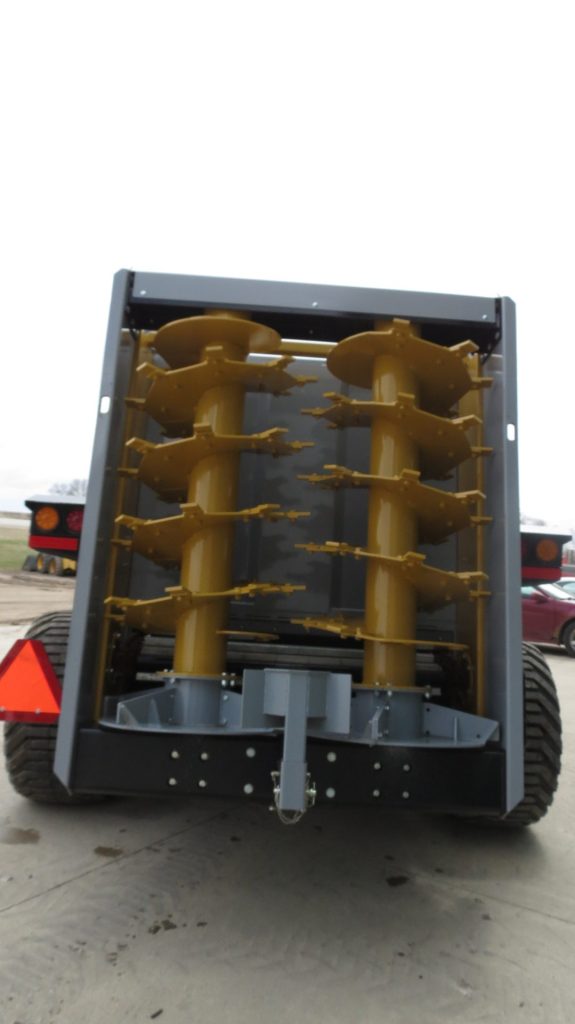

- Beater:
- Quick Drop
- Beater Diameter: 34″
- Beater Speed: 420 RPM
- PTO Speed: 1000RPM
- Beater Wedge
- Apron Chain:
- Hydraulic-Driven
- Apron Chain Link Diameter: 5/8″
- Includes:
- Standard Rubber Seal Kit – Endgate & Front Panel

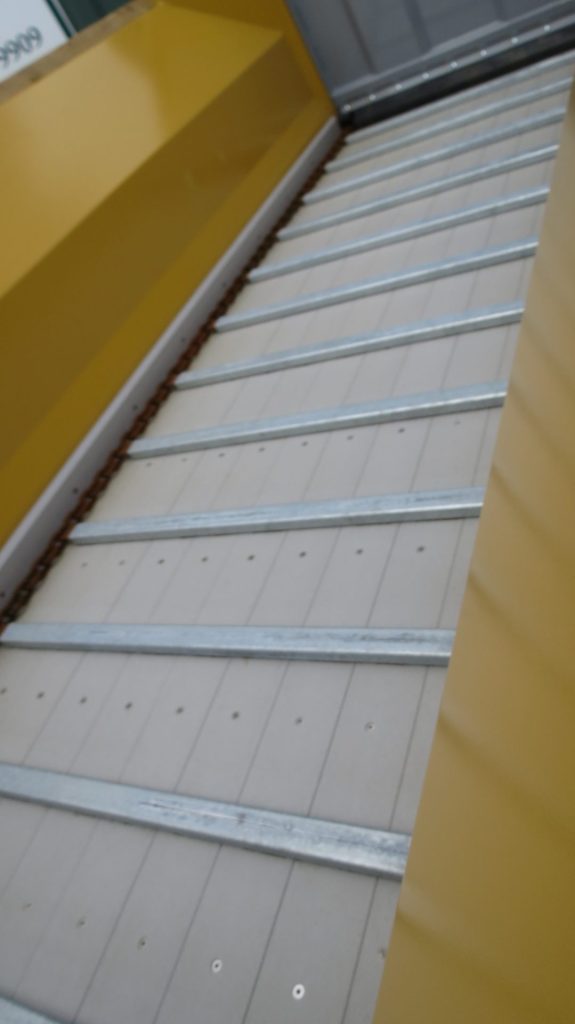

- Galvanized Slats
- Replaceable Reversible Knives
- Robust and Dynamically Balanced
- Driveline Protection
- Industrial Jack
- CV Shaft
- High Load Bearings
- Shipping Weight: 11,000 lbs. / 4,990 kg
- Required Tractor PTO HP: 125
- Brakes Available: Yes
