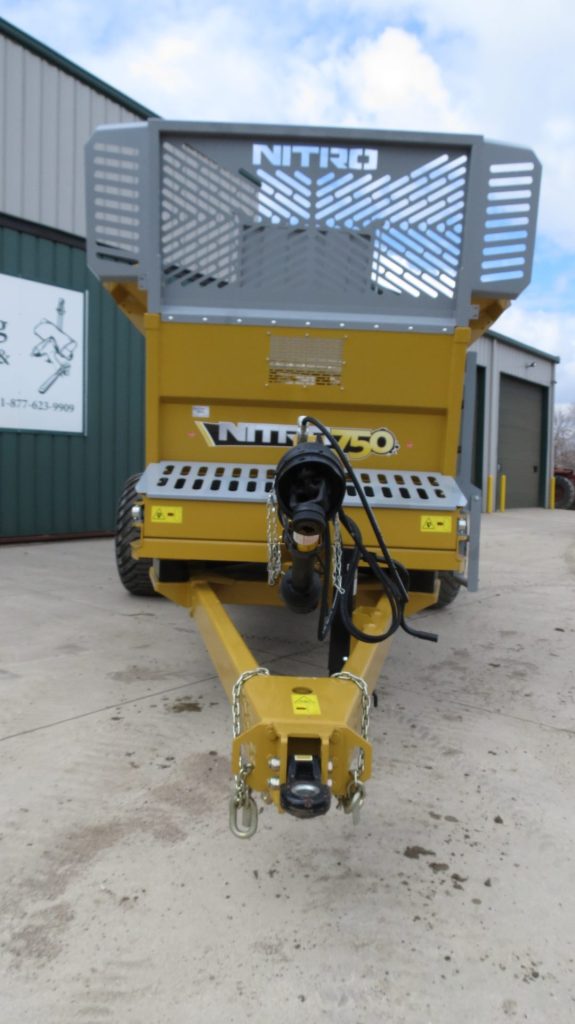

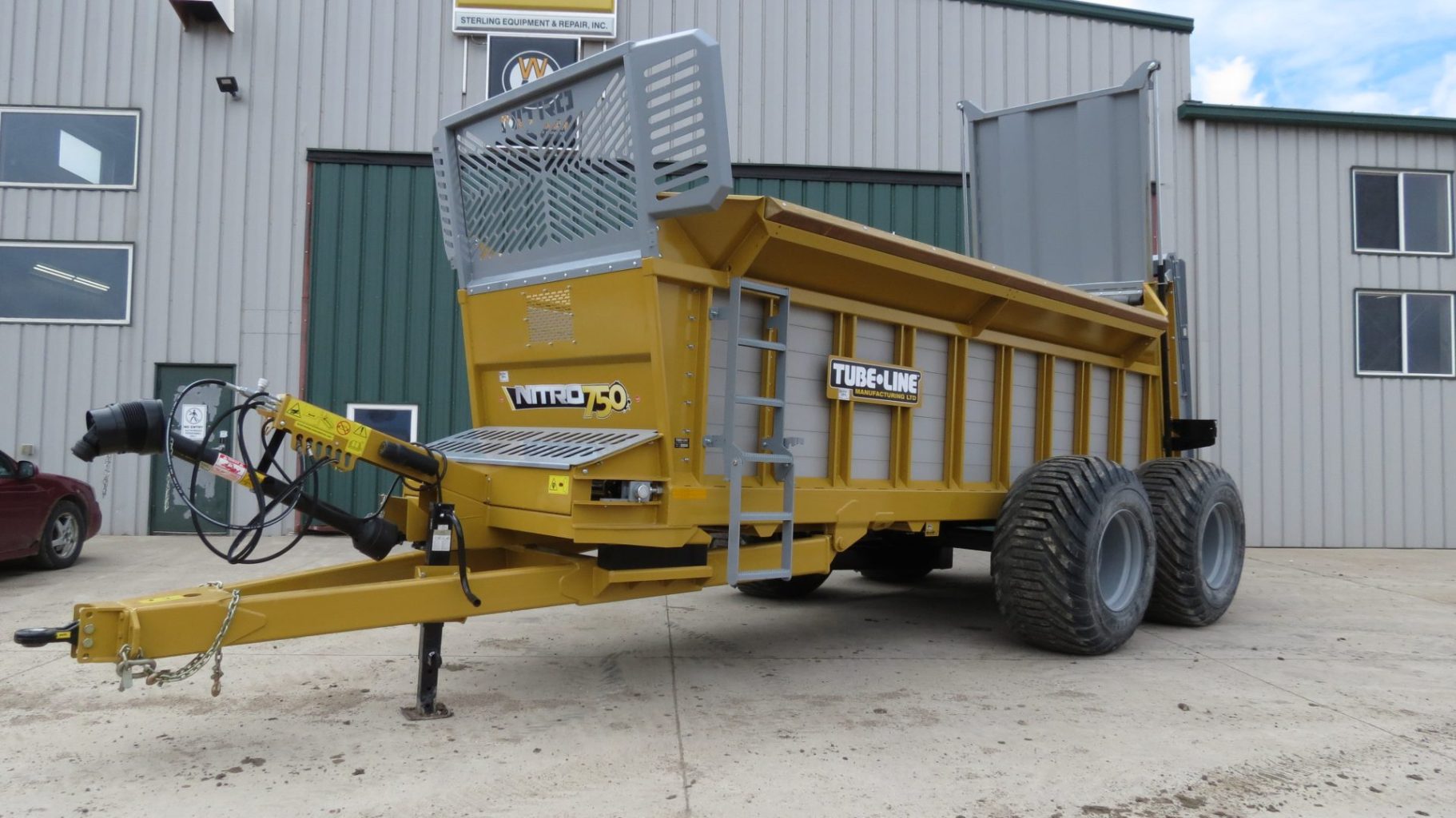

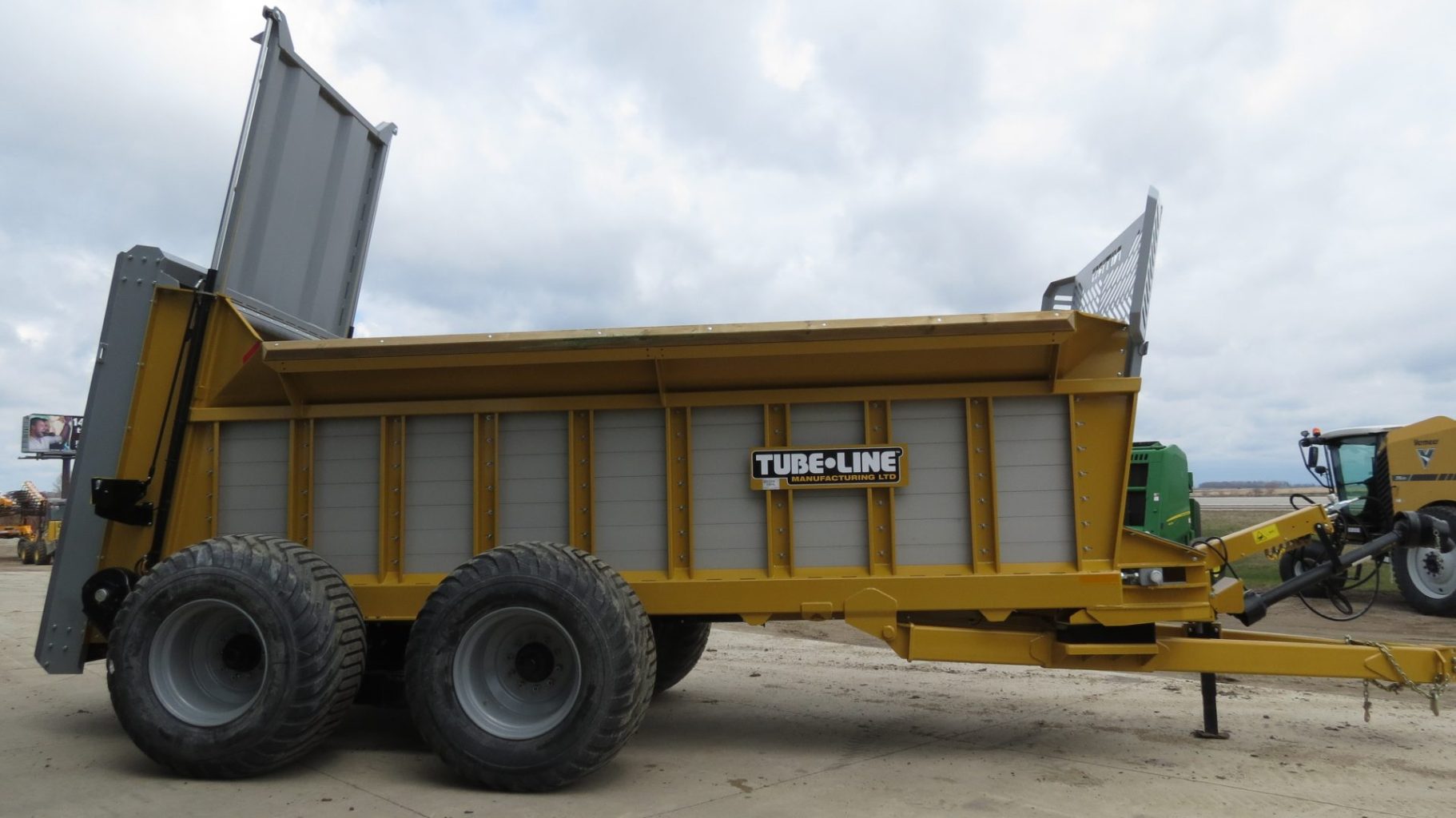

2023 Tubeline Nirto 750 Manure Spreader (Stk 5477)

Stk# 5477

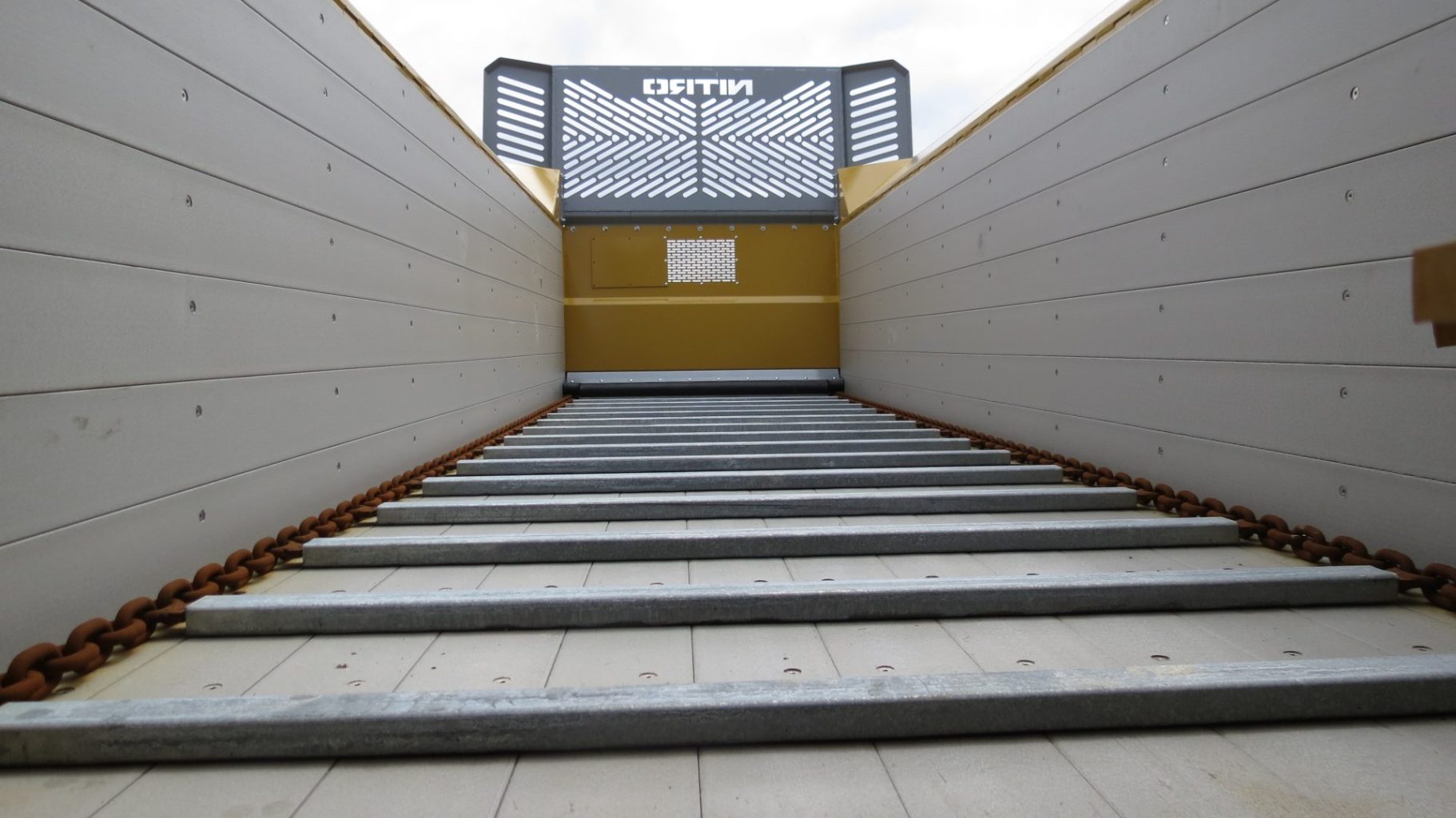

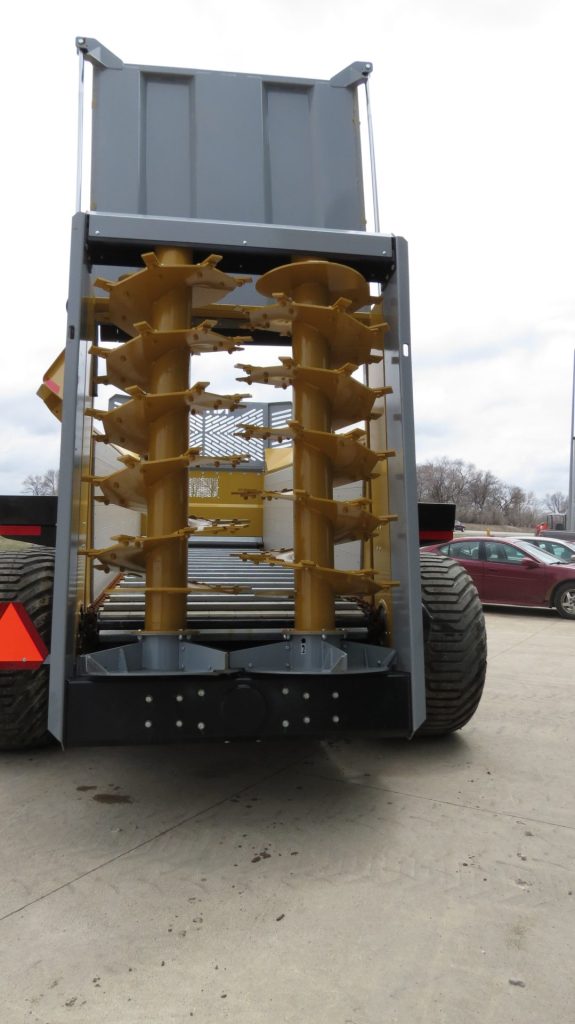

The NITRO spreader from Tubeline originally started with the 450, 600, and 750 models followed by the 950 model shortly after the initial product launch. Developed with features to ensure commercial readiness these spreaders offer slip slide poly board floors and walls, a guillotine endgate, reversible apron chain, and quick drop beaters. Engineered for commercial use, our commercial line are all scale ready. The guillotine endgate can be held in any position controlling how much material is able to be moved to the beaters by the variable speed apron chain. This method of delivery provides consistent metering whether working with pen pack or semi-solids.

Specifications Nitro 750
Carrying Capacity 20 Ton
Heaped (cu. ft.)
(with Optional Silage Extension) 838
1,038
Struck Level (cu. ft.)
(with Optional Silage Extension) 560
770
Inside Dimensions
(Inside width between flare 102.5″) 67″W x 58″D x 252″L
Overall Length 32.5′
Overall Outside Width (Single Axle) 136″
Overall Outside Width (Tandem Axle) 136″
Loading Height (Single Axle)
(with Optional Silage Extension) 100″
116″
Loading Height (Tandem Axle)
(with Optional Silage Extension) 102″
118″
Wheel Hub Capacity (Tandem Axle) 16,000 lbs. (10 bolt) x4
Tandem Tire Sizes 700/50-26.5
Wheel Hub Capacity (Single Axle) 20,000lbs (10 bolt) x2
Single Tire Sizes 710/70-42
Beater Diameter 36″
Beater Speed 420 RPM
PTO Speed 1000 RPM
Apron Chain Link Dia. 5/8″
Shipping Weight 16,195 lbs.
Required Tractor PTO HP 180.
Brakes Available Yes

Call for Price

For more information, please call 507-423-9909 or 877-623-9909.
